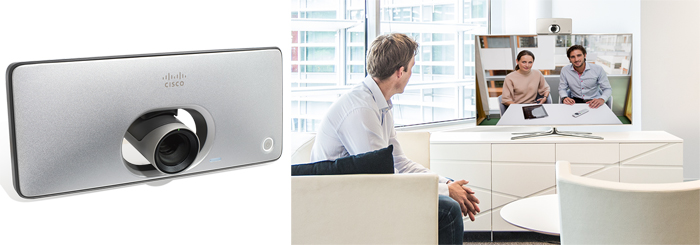

Use any flat-panel display to add video collaboration to small rooms and huddle paces using the all-in-one Cisco TelePresence SX10 Quick Set. This affordable unit is ideal for small- to medium-sized businesses just starting out with telepresence, or for extending telepresence throughout an enterprise. Now, Spark ready, the SX10 supports cloud registration to Cisco Spark Services for even faster and more cost effective deployment*.
Product Specifications
Table 1 lists the specifications of Cisco TelePresence SX10 Quick Set and Table 2 lists its capabilities.
Table 1. Cisco TelePresence SX10 Quick Set Specifications
|
Specification |
Description |
|
Software compatibility |
Cisco TelePresence Software Version TC 7.1 or later Cisco Collaboration Endpoint Software Version 8.0 or later |
|
Product delivered with |
● SX10 Codec with integrated HD camera and microphone
● Wall mount
● TRC6 remote control
● Network and HDMI cables
● The current model, CTS-SX10N-K9, includes a dedicated audio transmitter in the base unit to enable seamless performance when using Cisco Intelligent Proximity. The previous model, CTS-SX10-K9, relies on external speakers to transmit the Proximity signal.”
|
|
Integrated HD camera |
● 5x zoom (2.65 optical and digital zoom)
● +5°/-25° tilt, +/-30° pan
● 51.5° vertical field of view
● 83° horizontal field of view
● F-value from 2.1
● 1920 x 1080 pixels progressive @ 30 fps
● Automatic or manual focus, brightness, and white balance
● Far-end camera control
● Automatic flipping of picture when upside down
|
|
User interface |
TRC6 remote control and on-screen Graphical User Interface Optional Cisco TelePresence Touch 10 |
|
Language support |
English, Arabic, Catalan, Czech, Danish, Dutch, Finnish, French, German, Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese-Brazilian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish; depends on software version |
|
System management |
● Total management using embedded Telnet, SSH, XML, and SOAP
● Remote software upload using web server, secure copy (SCP), HTTP, and HTTPS
● Remote control and on-screen menu system
|
|
Directory services |
● Support for local directories (My Contacts)
● Corporate directory (through Cisco UCM and Cisco TelePresence Management Suite [TMS])
● Server directory supporting LDAP and H.350 (requires Cisco TelePresence Management Suite)
● Call History with received, placed, and missed calls with date and time
|
|
Power |
● PoE enabled
● Auto-sensing power supply
● 100 – 240 VAC, 50/60 Hz
● Maximum 12 watts in normal operation
|
|
Operating temperature and humidity |
● 0° to 40°C (32° to 95°F) at Relative Humidity 10% – 90% (noncondensing)
|
|
Storage and transport temperature |
● -20° to 60°C (60° to 140°F) at Relative Humidity 10% – 90% (noncondensing)
|
|
SX10 codec dimensions |
● Width: 10.8 inches (27.5 cm)
● Height: 4.6 inches (11.7 cm)
● Depth: 3.6 inches (9.1 cm) (with max tilt downward on camera)
● Weight: 2.0 pounds (0.9 kg)
|
|
Approvals and compliance |
● Directive 2006/95/EC (Low-Voltage Directive) – Standard IEC/EN 60950-1
● Directive 2004/108/EC (EMC Directive) – Standard EN 55022, Class B – Standard EN 55024 – Standard EN 61000-3-2/-3-3
● Approved according to UL 60950-1 and CAN/CSA-C22.2 No. 60950-1-07
● Complies with FCC CFR 47 Part 15 Class A
|
Table 2. Product Capabilities
|
Specification |
Description |
|
Bandwidth |
● Up to 3 Mbps
|
|
Minimum bandwidth for resolution/frame rate |
● 720p30 from 768 kbps
● 1080p30 from 1472 kbps
|
|
Firewall traversal |
● Cisco TelePresence Expressway Technology
|
|
Video standards |
● H.263, H.263+, and H.264
|
|
Video inputs |
Two video inputs (HDMI or VGA selectable through user interface) Supported Formats: ● 640×480 (VGA)
● 720×480
● 704×576 (4CIF)
● 800×600 (SVGA)
● 848×480
● 1024×768 (XGA)
● 1152×864 (XGA+)
● 1280×720 (720p)
● 1280×768 (WXGA)
● 1920 x 1080@30 (HD1080p)
Extended Display Identification Data (EDID)
|
|
Video output |
HDMI Output Supported Formats: ● 1920 x 1080@60 fps (1080p60)
VESA Monitor Power Management Extended Display Identification Data (EDID) |
|
Live video resolutions |
Live Video Resolutions (Encode and Decode): ● 176 x 144@30 (QCIF) (Decode only)
● 352 x 288@30 (CIF)
● 512 x 288@30 (w288p)
● 576 x 448@30 (448p)
● 768 x 448@30 (w448p)
● 704 x 576@30 (4CIF)
● 1024 x 576@30 (w576p)
● 640 x 480@30 (VGA)
● 800 x 600@30 (SVGA)
● 1024 x 768@30 (XGA)
● 1280 x 768@30 (WXGA)
● 1280 x 720@30 (HD720p)
● 1920 x 1080@30 (HD1080p)
|
|
Audio standards |
● 64 kbps MPEG4 AAC-LD, OPUS, G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729
|
|
Audio features |
● High-quality 20-kHz mono
● Two acoustic echo cancellers
● Automatic Gain Control (AGC)
● Automatic noise reduction
● Active lip synchronization
|
|
Audio inputs |
● One internal microphone
● One external microphone, 4-pin mini-jack (Table Microphone 20 or Cisco Ceiling Microphone)
● One HDMI audio-in
|
|
Audio outputs |
● One line out, mini-jack
● One HDMI, (digital main audio)
|
|
Dual stream |
● BFCP (SIP) dual stream
● Resolution up to 1080p5 (CE8.0 or later)
|
|
Multipoint support |
● Cisco Ad-Hoc Conferencing (requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor)
|
|
Protocols |
● SIP
|
|
Embedded encryption |
● SIP point-to-point
● Standards-based: Advanced Encryption Standard (AES)
● Automatic key generation and exchange
● Supported in dual stream
|
|
IP network features |
● DNS lookup for service configuration
● Differentiated Services (QoS)
● IP adaptive bandwidth management (including flow control)
● Dynamic playout and lip-sync buffering
● Date and Time support via NTP
● Packet Loss based downspeeding
● URI Dialing
● TCP/IP
● DHCP
● 802.1x Network authentication
● 802.1Q Virtual LAN
● 802.1p (QoS and class of service [CoS])
● ClearPath
|
|
Cisco Unified Communications Manager (Requires Cisco UCM Version 8.6 or later) |
● Native registration with Cisco Unified Communications Manager
● Basic Cisco Unified Communications Manager provisioning
● Firmware upgrade from Cisco Unified Communications Manager
● Cisco Discovery Protocol and DHCP option 150 support
● Basic telephony features such as hold, resume, transfer, and corporate directory lookup
|
|
IPv6 network support |
● Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)
● Support for both static and autoconfiguration (stateless address autoconfiguration)
|
|
Security features |
● Management through HTTPS and SSH
● IP administration password
● Menu administration password
● Disable IP services
● Network settings protection
|
|
Network interfaces |
● One PoE-enabled LAN connector (RJ-45) 100-Mbit
|
|
Other interfaces |
● One USB port for future usage
● One Micro USB port for debugging
|
Features
The primary features of the Cisco TelePresence SX10 follow:
|
● Optimal definition up to 1080p30 with content sharing at 1080p5*
● Wide-angle 83° horizontal FOV with 5x zoom
● Supports Cisco Intelligent Proximity for content sharing to mobile devices and wireless sharing from laptops (Macs and PCs)2
● Wireless control of the system is also enabled with Intelligent Proximity
● Easily control room peripherals such as lights, room dividers, curtains, directly from the Cisco TelePresence Touch 10 (optional) through customizable API1 (requires external third-party control system processor)
● Ready-to-use unit with Power over Ethernet (PoE)
● Integrated microphone
● Energy efficient with low consumption (EU Class B)
● Registers with Cisco® Unified Communications Manager (UCM) and Cisco TelePresence Video Communication Server (VCS)
|
