The Cisco TelePresence Serial GW MSE 8330 blade helps to enable transparent integration of IP and serial video conferencing networks. It is part of the industry-leading Cisco TelePresence MSE 8000 Series chassis-based video conferencing solution.

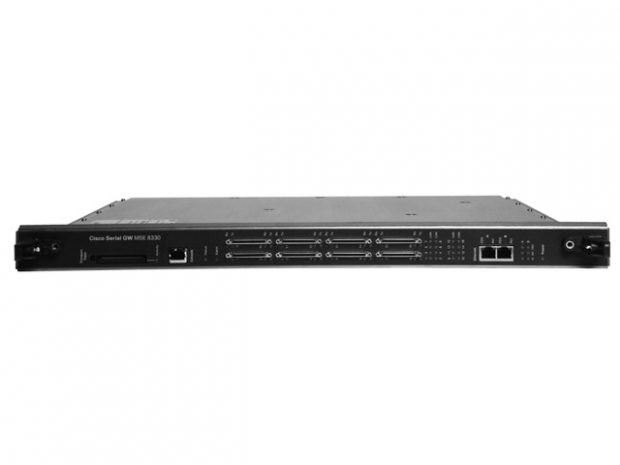

Cisco TelePresence Serial GW MSE 8330
产品简介：
- 产品基本信息
- 产品特点与优点
The blade is highly scalable, with feature transparency and powerful dial-plan capabilities. For organizations using networks attached through serial interfaces, it provides all the benefits of IP-based high-definition (HD) video conferencing solutions.
Features
- Standards-based and compatible with all major vendors’ IP video endpoints and multipoint conference units (MCUs)
- 16 independently clocked ports per blade
- Supports V.35, RS-449, and EIA-530 synchronous serial data interfaces and RS-366 dialing
- Supports external serial encryption devices, including loss of synchronization (LOS) support
- Offers powerful dial plans to help ensure calls are routed efficiently
- Supports bandwidth per call from 56 to 1920 kbps
Features and Benefits
Table 1 summarizes the key features of the Cisco TelePresence Serial GW MSE 8330 blade, and Figure 2 shows an example of secure serial connectivity to a video conferencing multipoint control unit (MCU).
Table 1. Cisco TelePresence Serial GW MSE 8330 Feature Summary
|
Feature |
Benefit |
|
Design features |
● Standards-based and compatible with all major vendors’ IP video endpoints and MCUs
● Pay as you grow – buy the capacity you need now and upgrade in the future with a software license
● Easily configurable unit
● Comprehensive remote web management
● 16 independently clocked ports
● Support for V.35, RS-449, and EIA-530 synchronous serial data interfaces and RS-366 dialing
|
|
Application features |
● Provides transparent integration between IP and serial devices
● Supports external serial encryption devices, including Loss of Synchronization (LOS) support
● Supports H.239 for content sharing
● Offers powerful dial plans to ensure that your calls get routed efficiently
● Fully integrated, with built-in gatekeeper
● Supports automatic load balancing in multiple gateway environments
|
|
Performance features |
● Offers video resolutions up to HD 720p at 30 fps
● Supports up to 16 serial ports in a single blade
● Enables up to 144 serial ports in a single chassis
● Supports up to 16 video calls at 1920 kbps each, per blade
● Supports bandwidth per call from 56 to 1920 kbps
|
