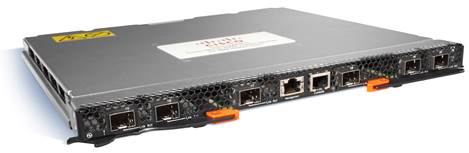

The Cisco Nexus 4000 Series Blade Switches extend the benefits of the Cisco Nexus Family to blade servers. Part of the Cisco Data Center Business Advantage network foundation, these switches address the challenges of having more switches and cables in a single chassis , implementing virtual machine mobility, and increasing bandwidth and power requirements.
Cisco Nexus 4000 系列交换机
产品简介：
- 产品基本信息
- 产品特点与优点
| escription | Specification | |
| Performance | ● 400-Gbps switching capacity
● Forwarding rate of 300 million packets per second (mpps) ● Low, predictable, and consistent latency of 1.5 microseconds regardless of packet size, traffic pattern, or enabled features on 10 Gigabit Ethernet interface ● Line-rate traffic throughput on all ports ● Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames) |
|
| Hardware tables and scalability | MAC addresses | 8192 |
| Number of configurable VLANS | 512 (configurable range 1 to 4096) | |
| Spanning-tree instances (sum of the VLANs per port: that is, the number of VLANs times the number of ports) | ● Rapid Spanning Tree Protocol (RSTP): 3000
● Multiple Spanning Tree (MST) Protocol: 10,000 |
|
| Access control list (ACL) entries | 512 | |
| Number of EtherChannels | 7 | |
| Number of ports per EtherChannel | 6 | |
| Queues | 8 hardware queues per port | |
| Memory | 2-GB DDR2 DIMM with ECC | |
| Flash memory | 1-GB eUSB | |
| Power consumption | 12V at 5.75A (69W) (maximum) | |
| Indicators | Total of 16 LEDs on the faceplate
● 12 LEDs for uplink port status ● 2 switch-status LEDs ● 2 management-port-status LEDs |
|
| Dimensions (L x W x H) | 10.27 x 11.57 x 0.79 in. (260.93 x 293.9 x 20 mm) | |
| Weight | Approximately 3.94 lb (1.79 kg) | |
| Environmental ranges | ● Operating temperature: 32 to 104° F (0 to 40°C)
● Storage temperature: –13 to 158° F (–25 to 70°C) ● Operating relative humidity: 10 to 85% noncondensing ● Storage relative humidity: 5 to 95% noncondensing |
|
| Predicted mean time between failure (MTBF) | Approximately 187,265 hours | |
Cisco Nexus 4000 Switch provides four major benefits.
- Lower Total Cost of Operation (TCO): Unified Fabric with the Cisco Nexus 4000 on the blade server access allows a significant reduction in the number of switches, network interface cards and in power requirements.
- High Performance: Purpose built with Unified Switch ASIC, Cisco Nexus 4000 is a line-rate, extremely low latency 10 Gigabit Ethernet switch
- Enhanced Server Virtualization: Unified Fabric with Cisco Nexus 4000 provides uniform server interfaces and simplified cabling enhances VM mobility.
- Increased Resilience: Cisco Nexus 4000 extends NX-OS to blade server access, providing a single modular operating system across the data center.
