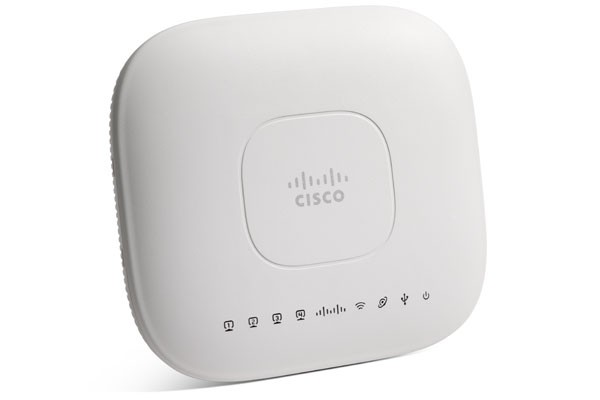

Cisco Aironet 600 Series OfficeExtend Access Point

产品简介:

802.11n Wireless Performance and Reliability

Extend predictable 802.11n wireless coverage to the home teleworking environment with Cisco Aironet 600 Series OfficeExtend Access Points.

Increase productivity, lower cost, and gain business continuity with seamless , reliable, and highly secure access to networked services from the home or remote office.

Purposely designed for the teleworking environment, the Cisco Aironet 600 Series OfficeExtend Access point delivers full 802.11n speed with simultaneous 2.4 GHz and 5 GHz RF band support.

  • 产品基本信息
  • 产品特点与优点

Product Specifications

Table 2 lists the product specifications for the Cisco Aironet 600 Series OfficeExtend Access Points.

Table 2.       Product Specifications

Item Specification
Part numbers Cisco Aironet 600 OfficeExtend Series Access Points

●  AIR-OEAP602I-x-K9: Dual-band controller-based 802.11a/g/n

●  AIR-OEAP602I-xK910: Eco-pack (dual-band 802.11a/g/n) 10 quantity controller-based access points

Regulatory domains: (x = regulatory domain)

Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, visithttp://www.cisco.com/go/aironet/compliance.

Software ●  Cisco Unified Wireless Network Software Release 7.0 MR1 or later
Controllers supported ●  Cisco Virtual, 2500, 5500, 7500, and 8500 Series Wireless Controllers and Cisco Wireless Services Module 2 (WiSM2)
802.11n ●  Multiple-input multiple-output (MIMO) with two spatial streams

●  Maximal ratio combining (MRC)

●  20- and 40-MHz channels

●  PHY data rates up to 300 Mbps[1]

●  Packet aggregation: A-MPDU (Tx/Rx)

●  Cyclic shift diversity (CSD) support

Data rates supported 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
802.11n data rates (2.4 GHz and 5 GHz):
MCS Index[2] GI[3]= 800 ns GI = 400 ns
20-MHz Rate (Mbps) 40-MHz Rate (Mbps) 20-MHz Rate (Mbps) 40-MHz Rate (Mbps)
0 6.5 13.5 7.2 15
1 13 27 14.4 30
2 19.5 40.5 21.7 45
3 26 54 28.9 60
4 39 81 43.3 90
5 52 108 57.8 120
6 58.5 121.5 65 135
7 65 135 72.2 150
8 13 27 14.4 30
9 26 54 28.9 60
10 39 81 43.3 90
11 52 108 57.8 120
12 78 162 86.7 180
13 104 216 115.6 240
14 117 243 130 270
15 130 270 144.4 300
Frequency band and 20-MHz operating channels A Regulatory Domain:

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.240 GHz; 4 channels

●  5.745 to 5.825 GHz; 5 channels

C Regulatory Domain:

●  2.412 to 2.472 GHz; 13 channels

●  5.745 to 5.825 GHz; 5 channels

E Regulatory Domain:

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.240 GHz; 4 channels

I Regulatory Domain:

●  2.412 to 2.472 GHz, 13 channels

●  5.180 to 5.240 GHz; 4 channels

K Regulatory Domain:

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.240 GHz; 4 channels

●  5.745 to 5.805 GHz; 4 channels

N Regulatory Domain:

●  2.412 to 2.462 GHz; 11 channels

●  5.180 to 5.240 GHz; 4 channels

●  5.745 to 5.825 GHz; 5 channels

P Regulatory Domain:

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.240 GHz; 4 channels

R Regulatory Domain:

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.240 GHz; 4 channels

●  5.745 to 5.805 GHz; 4 channels

S Regulatory Domain:

●  2.412 to 2.472 GHz; 13 channels

●  5.180 to 5.240 GHz; 4 channels

●  5.745 to 5.825 GHz; 5 channels

T Regulatory Domain:

●  2.412 to 2.462 GHz; 11 channels

●  5.745 to 5.825 GHz; 5 channels

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum number of nonoverlapping channels 2.4 GHz

●  802.11b/g: 20 MHz: 3

●  802.11n: 20 MHz: 3

5 GHz

●  802.11a:20 MHz: 9

●  802.11n: 20 MHz: 9, 40 MHz: 4

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive sensitivity 2.4 GHz

●  802.11b: -87 dBm typical @ 11 Mbps

●  802.11g: -77 dBm typical @ 54 Mbps

●  802.11n 20 MHz: -71 dBm typical @ MCS15

●  802.11n 40 MHz: -68 dBm typical @ MCS15

5 GHz

●  802.11a: -74 dBm typical @ 54 Mbps

●  802.11n 20 MHz: -68 dBm typical @ MCS15

●  802.11n 40 MHz: -65 dBm typical @ MCS15

Maximum transmit power 2.4 GHz

●  802.11b (CCK): 20 dBm with one antenna

●  802.11g: 20 dBm with 2 antennas

●  802.11n (HT20): 20 dBm with 2 antennas

●  802.11n (HT40): 20 dBm with 2 antennas

5 GHz

●  802.11a: 20 dBm with 2 antennas

●  802.11n (HT20): 20 dBm with 2 antennas

●  802.11n (HT40): 20 dBm with 2 antennas

Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated antenna ●  2.4 GHz, gain 3.5 dBi, horizontal beamwidth 360°

●  5 GHz, gain 4.0 dBi, horizontal beamwidth 360°

Interfaces ●  4x 10/100/1000BASE-T autosensing (RJ-45)

●  1x 10/100/1000BASE-T WAN port (RJ-45)

●  USB (not used)

Indicators ●  Status LED indicates boot loader status, association status, operating status, boot loader errors, port status
Dimensions
(W x L x H)
●  Access point (without cradle): 7.75 x 7 x 1.6 in. (195.3 x 176.3 x 39.65 mm)

●  Access point (with cradle): 8.1 x 7.0 x 2.7 in. (206.15 x 176.3 x 67 mm)

Weight ●  0.99 lb (0.452 kg) without cradle

●  1.44 lb (0.653 kg) with cradle

Environmental ●  Nonoperating (storage) temperature: -13° to +140°F (-25° to 60°C)

●  Operating temperature: 32° to 104°F (0° to 40°C)

●  Operating humidity: 10% to 80% relative humidity (noncondensing)

System memory ●  64 MB DRAM

●  16 MB flash

Power options ●  Cisco AP600 local power supply: 100 to 240 VAC; 50 to 60 Hz (AIR-PWR-ADTR-cc, where cc is country code as follows: AP=Asia Pacific; AR=Argentina/Uruguay; AU=Australia; BR=Brazil; CE=Central Europe; CH=China; DM=Denmark; IS=Israel; IT=Italy; JP=Japan; NA=North America; SA=South Africa; SW=Switzerland; UK=United Kingdom)
Power draw ●  Consumption: 12W normal, 15W maximum
Warranty Limited Lifetime Hardware Warranty
Compliance and safety standards ●  Safety

◦   UL 60950-1, 2 nd Edition

◦   CAN/CSA-C22.2 No. 60950-1, 2 nd Edition

◦   IEC 60950-1, 2 nd Edition

◦   EN 60950-1, 2 nd Edition

●  Radio Approvals

◦   FCC Part 15.247, 15.407

◦   RSS-210 (Canada)

◦   EN 300 328, EN 301 893 (Europe)

◦   ARIB-STD 33 (Japan)

◦   ARIB-STD 66 (Japan)

◦   ARIB-STD T71 (Japan)

◦   AS/NZS 4268.2003 (Australia and New Zealand)

◦   EMI and susceptibility (Class B)

◦   FCC Part 15.107 and 15.109

◦   ICES-003 (Canada)

◦   VCCI (Japan)

◦   EN 301 489-1 and -17 (Europe)

●  IEEE Standard

◦   IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d

●  Security

◦   802.11i, Wi-Fi Protected Access 2 (WPA2), WPA

◦   802.1X

◦   Advanced Encryption Standard (AES), Temporal Key Integrity Protocol (TKIP)

●  EAP Type(s)

◦   Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)

◦   EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2)

◦   Protected EAP (PEAP) v0 or EAP-MSCHAPv2

◦   Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST)

◦   PEAPv1 or EAP-Generic Token Card (GTC)

◦   EAP-Subscriber Identity Module (SIM)

●  Multimedia

◦   Wi-Fi Multimedia (WMM)

●  Other

◦   FCC Bulletin OET-65C

◦   RSS-102

Business Benefits

  • Extends Borderless Network services and policies to the home-office teleworker.
  • Protects the corporate environment with industry-standard control and wireless access point (CAPWAP) support.
  • Simultaneously supports corporate and personal network activity with traffic segmentation.
  • Increases productivity and reduces cellular cost by extending voice to the home wirelessly or via a wired Ethernet port.
  • Reduces setup time with simplified IT provisioning.
  • Comes with a limited lifetime warranty that includes 10-day advance hardware replacement.

Benefits for the Teleworker

  • Zero-touch deployment at the home office speeds setup time and gets you working right away.
  • Simultaneous dual-band support helps avoid congestion caused by home devices.
  • Backward capability supports 802.11a/b/g devices as well as newly deployed 802.11n devices.
  • Sleek design for convenient desktop placement.
