Cisco Aironet 1600 Series

产品基本信息
产品特点与优点

Product Specifications

Table 1 lists the product specifications for Cisco Aironet 1600 Series Access Points.

Table 1. Product Specifications for Cisco Aironet 1600 Series Access Points

Item	Specification

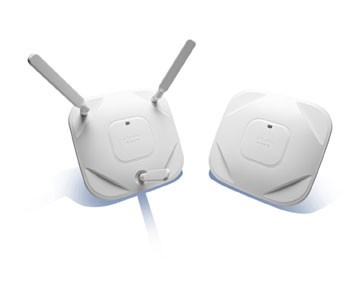

Part Numbers	The Cisco Aironet 1600i Access Point: Indoor environments, with internal antennas ● AIR-CAP1602I-x-K9 Dual-band controller-based 802.11a/g/n ● AIR-CAP1602I-xK910 Eco-pack (dual-band controller-based 802.11a/g/n) 10 quantity access points ● AIR-SAP1602I-x-K9 Dual-band stand-alone 802.11a/g/n ● AIR-SAP1602I-xK9-5 Eco-pack (dual-band stand-alone 802.11a/g/n) 5 quantity access points The Cisco Aironet 1600e Access Point: Indoor, challenging environments, with external antennas ● AIR-CAP1602E-x-K9 Dual-band controller-based 802.11a/g/n ● AIR-CAP1602E-xK910 Eco-pack (dual-band 802.11a/g/n) 10 quantity access points ● AIR-SAP1602E-x-K9 Dual-band stand-alone 802.11a/g/n ● AIR-SAP1602E-xK9-5 Eco-pack (dual-band stand-alone 802.11a/g/n) 5 quantity access points Cisco SMARTnet^® Service for the Cisco Aironet 1600 Series Access Point with internal and external antennas ● CON-SNT-C1602Ix – SMARTnet 8x5xNBD 1600i access point (dual-band 802.11 a/g/n, Controller-based), (e.g. CON-SNT-C1602IE for AP1600 internal antenna for E Domain, Controller based) ● CON-SNT-C1602Ex – SMARTnet 8x5xNBD 1600e access point (dual-band 802.11 a/g/n, Controller-based), (e.g. CON-SNT-C1602EA for AP1600 external antenna for A Domain, Controller based) ● CON-SNT-S1602Ix – SMARTnet 8x5xNBD 1600i access point (dual-band 802.11 a/g/n, Stand-alone), (e.g. CON‑SNT-S1602IE for AP1600 internal antenna for E Domain, stand-alone) ● CON-SNT-S1602Ex – SMARTnet 8x5xNBD 1600e access point (dual-band 802.11 a/g/n, Stand-alone), (e.g. CON‑SNT-S1602EA for AP1600 external antenna for A Domain, Stand-alone) Cisco Wireless LAN Services ● AS-WLAN-CNSLTCisco Wireless LAN Network Planning and Design Service ● AS-WLAN-CNSLTCisco Wireless LAN 802.11n Migration Service ● AS-WLAN-CNSLTCisco Wireless LAN Performance and Security Assessment Service Regulatory domains: (x = regulatory domain) Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country, please visit:http://www.cisco.com/go/aironet/compliance. Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List.
Software	● Cisco Unified Wireless Network Software (available in Q4CY12) ● Cisco IOS^® Software Release(available in Q4CY12)
802.11n	● 3 x 3 multiple-input multiple-output (MIMO) with two spatial streams ● Maximal ratio combining (MRC) ● 20- and 40-MHz channels ● PHY data rates up to 300 Mbps ● Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) ● 802.11 dynamic frequency selection (DFS) (Bin 5) ● Cyclic shift diversity (CSD) support
Data Rates Supported	802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps
	802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps
	802.11n data rates (2.4 GHz^[1] and 5 GHz):
	MCS Index^[2]		GI^[3]= 800ns					GI = 400ns
	MCS Index^[2]		20-MHz Rate (Mbps)			40-MHz Rate (Mbps)		20-MHz Rate (Mbps)			40-MHz Rate (Mbps)
	0		6.5			13.5		7.2			15
	1		13			27		14.4			30
	2		19.5			40.5		21.7			45
	3		26			54		28.9			60
	4		39			81		43.3			90
	5		52			108		57.8			120
	6		58.5			121.5		65			135
	7		65			135		72.2			150
	8		13			27		14.4			30
	9		26			54		28.9			60
	10		39			81		43.3			90
	11		52			108		57.8			120
	12		78			162		86.7			180
	13		104			216		115.6			240
	14		117			243		130			270
	15		130			270		144.4			300
Frequency Band and 20-MHz Operating Channels	A Regulatory Domain: ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels C Regulatory Domain: ● 2.412 to 2.472 GHz; 13 channels ● 5.745 to 5.825 GHz; 5 channels E Regulatory Domain: ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) I Regulatory Domain: ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels K Regulatory Domain: ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.620 GHz; 7 channels ● 5.745 to 5.805 GHz; 4 channels					N Regulatory Domain: ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.745 to 5.825 GHz; 5 channels Q Regulatory Domain: ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels R Regulatory Domain: ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.660 to 5.700 GHz; 3 channels ● 5.745 to 5.805 GHz; 4 channels S Regulatory Domain: ● 2.412 to 2.472 GHz; 13 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 11 channels ● 5.745 to 5.825 GHz; 5 channels T Regulatory Domain: ● 2.412 to 2.462 GHz; 11 channels ● 5.280 to 5.320 GHz; 3 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels Z Regulatory Domain: ● 2.412 to 2.462 GHz; 11 channels ● 5.180 to 5.320 GHz; 8 channels ● 5.500 to 5.700 GHz; 8 channels (excludes 5.600 to 5.640 GHz) ● 5.745 to 5.825 GHz; 5 channels
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Maximum Number of Nonoverlapping Channels	2.4 GHz ● 802.11b/g: ◦ 20 MHz: 3 ● 802.11n: ◦ 20 MHz: 3					5 GHz ● 802.11a: ◦ 20 MHz: 24 ● 802.11n: ◦ 20 MHz: 24 ◦ 40 MHz: 11
Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.
Receive Sensitivity	2.4 GHz 802.11b -101 dBm @ 1 Mb/s -99 dBm @ 2 Mb/s -92 dBm @ 5.5 Mb/s -89 dBm @ 11 Mb/s			2.4 GHz 802.11g -93 dBm @ 6 Mb/s -93 dBm @ 9 Mb/s -92 dBm @ 12 Mb/s -90 dBm @ 18 Mb/s -87 dBm @ 24 Mb/s -85 dBm @ 36 Mb/s -80 dBm @ 48 Mb/s -79 dBm @ 54 Mb/s			5 GHz 802.11a -92 dBm @ 6 Mb/s -91 dBm @ 9 Mb/s -91 dBm @ 12 Mb/s -89 dBm @ 18 Mb/s -86 dBm @ 24 Mb/s -83 dBm @ 36 Mb/s -79 dBm @ 48 Mb/s -78 dBm @ 54 Mb/s
	2.4 GHz 802.11n (HT20) -93 dBm @ MCS0 -91 dBm @ MCS1 -89 dBm @ MCS2 -86 dBm @ MCS3 -83 dBm @ MCS4 -78 dBm @ MCS5 -77 dBm @ MCS6 -76 dBm @ MCS7 -93 dBm @ MCS8 -90 dBm @ MCS9 -88 dBm @ MCS10 -85 dBm @ MCS11 -81 dBm @ MCS12 -77 dBm @ MCS13 -76 dBm @ MCS14 -74 dBm @ MCS15						5 GHz 802.11n (HT20) -92 dBm @ MCS0 -89 dBm @ MCS1 -88 dBm @ MCS2 -85 dBm @ MCS3 -82 dBm @ MCS4 -77 dBm @ MCS5 -76 dBm @ MCS6 -75 dBm @ MCS7 -91 dBm @ MCS8 -88 dBm @ MCS9 -87 dBm @ MCS10 -84 dBm @ MCS11 -81 dBm @ MCS12 -76 dBm @ MCS13 -75 dBm @ MCS14 -73 dBm @ MCS15			5 GHz 802.11n (HT40) -88 dBm @ MCS0 -87 dBm @ MCS1 -85 dBm @ MCS2 -82 dBm @ MCS3 -79 dBm @ MCS4 -74 dBm @ MCS5 -73 dBm @ MCS6 -72 dBm @ MCS7 -88 dBm @ MCS8 -86 dBm @ MCS9 -84 dBm @ MCS10 -81 dBm @ MCS11 -78 dBm @ MCS12 -73 dBm @ MCS13 -72 dBm @ MCS14 -70 dBm @ MCS15
Maximum Total Transmit Power	2.4 GHz ● 802.11b ◦ 22 dBm (3 antennas enabled) ● 802.11g ◦ 22 dBm (3 antennas enabled) ● 802.11n (HT20) ◦ 22 dBm (3 antennas enabled)						5 GHz ● 802.11a ◦ 22 dBm (3 antennas enabled) ● 802.11n non-HT duplicate mode ◦ 22 dBm (3 antennas enabled) ● 802.11n (HT20) ◦ 22 dBm (3 antennas enabled) ● 802.11n (HT40) ◦ 22 dBm (3 antennas enabled)
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Available Total Transmit Power Settings	2.4 GHz						5 GHz
	Enabled antennas:						Enabled antennas:
	1	2			3		1		2			3
	17 dBm 14 dBm 11 dBm 8 dBm 5 dBm 2 dBm	20 dBm 17 dBm 14 dBm 11 dBm 8 dBm 5 dBm			22 dBm 19 dBm 16 dBm 13 dBm 10 dBm 7 dBm		17 dBm 14 dBm 11 dBm 8 dBm 5 dBm 2 dBm		20 dBm 17 dBm 14 dBm 11 dBm 8 dBm 5 dBm			22 dBm 19 dBm 16 dBm 13 dBm 10 dBm 7 dBm
Note: The maximum power setting will vary by channel and according to individual country regulations. Refer to the product documentation for specific details.
Integrated Antenna	● 2.4 GHz, gain 4.0 dBi, horizontal beamwidth 360° ● 5 GHz, gain 4.0 dBi, horizontal beamwidth 360°
External Antenna (Sold Separately)	● Certified for use with antenna gains up to 6 dBi (2.4 GHz and 5 GHz) ● Cisco offers the industry’s broadest selection of 802.11n antennas delivering optimal coverage for a variety of deployment scenarios
Interfaces	● 10/100/1000BASE-T autosensing (RJ-45) ● Management console port (RJ-45)
Indicators	● Status LED indicates boot loader status, association status, operating status, boot loader warnings, boot loader errors
Dimensions (W x L x H)	● Access point (without mounting bracket): 8.7 x 8.7 x 1.84 in. (22.1 x 22.1 x 4.7 cm)
Weight	● 1.9 lbs. (0.86 kg)
Environmental	Cisco Aironet 1600i ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test -25°C, 15,000 ft. ● Operating temperature: 32 to 104°F (0 to 40°C) ● Operating humidity: 10 to 90% percent (noncondensing) ● Operating Altitude Test -40°C, 9843 ft. Cisco Aironet 1600e ● Nonoperating (storage) temperature: -22 to 158°F (-30 to 70°C) ● Nonoperating (storage) Altitude Test – 25°C, 15,000 ft. ● Operating temperature: -4 to 122°F (-20 to 50°C) ● Operating humidity: 10 to 90 percent (noncondensing) ● Operating Altitude Test -40°C, 9843 ft
System Memory	● 256 MB DRAM ● 32 MB flash
Input Power Requirements	● AP1600: 44 to 57 VDC ● Power Supply and Power Injector: 100 to 240 VAC; 50 to 60 Hz
Powering Options	● 802.3af Ethernet Switch ● Cisco AP1600 Power Injectors (AIR-PWRINJ4=, AIR-PWRINJ5=) ● Cisco AP1600 Local Power Supply (AIR-PWR-B=)
Power Draw	● AP1600: 12.95 W Note: When deployed using PoE, the power drawn from the power sourcing equipment will be higher by some amount dependent on the length of the interconnecting cable. This additional power may be as high as 2.45W, bringing the total system power draw (access point + cabling) to 15.4W.
Warranty	Limited Lifetime Hardware Warranty
Compliance	Standards ● Safety: ◦ UL 60950-1 ◦ CAN/CSA-C22.2 No. 60950-1 ◦ UL 2043 ◦ IEC 60950-1 ◦ EN 60950-1 ● Radio approvals: ◦ FCC Part 15.247, 15.407 ◦ RSS-210 (Canada) ◦ EN 300.328, EN 301.893 (Europe) ◦ ARIB-STD 33 (Japan) ◦ ARIB-STD 66 (Japan) ◦ ARIB-STD T71 (Japan) ◦ AS/NZS 4268.2003 (Australia and New Zealand) ◦ EMI and susceptibility (Class B) ◦ FCC Part 15.107 and 15.109 ◦ ICES-003 (Canada) ◦ VCCI (Japan) ◦ EN 301.489-1 and -17 (Europe) ◦ EN 60601-1-2 EMC requirements for the Medical Directive 93/42/EEC ● IEEE Standard: ◦ IEEE 802.11a/b/g, IEEE 802.11n, IEEE 802.11h, IEEE 802.11d ● Security: ◦ 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA ◦ 802.1X ◦ Advanced Encryption Standards (AES), Temporal Key Integrity Protocol (TKIP) ● EAP Type(s): ◦ Extensible Authentication Protocol-Transport Layer Security (EAP-TLS) ◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol Version 2 (MSCHAPv2) ◦ Protected EAP (PEAP) v0 or EAP-MSCHAPv2 ◦ Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) ◦ PEAPv1 or EAP-Generic Token Card (GTC) ◦ EAP-Subscriber Identity Module (SIM) ● Multimedia: ◦ Wi-Fi Multimedia (WMM ^™ ) ● Other: ◦ FCC Bulletin OET-65C ◦ RSS-102

Features and Capabilities

Entry-level access point for small to midsized organizations, including retail, manufacturing, education, and branch offices
Attractive price and performance for migrating to 802.11n
Up to six times more capacity to support applications and clients than legacy 802.11a/b/g networks
Cisco ClientLink 2.0 for better downlink performance and range and longer battery life on mobile devices
Cisco CleanAir Express^* for proactive spectrum intelligence to address RF interference problems
Limited Lifetime Hardware Warranty, including 10-day advance hardware replacement

Wireless innovations include:

Cisco ClientLink 2.0 technology
Cisco VideoStream technology
Cisco Bandselect
CleanAir Express^*
