Avocent SwitchView Analog KVM Switches

产品简介：
The cost-efficient Avocent SwitchView analog KVM switch provides PS/2 or USB connectivity for one user and 4, 8 or 16 target devices.
This single-user switch has an on-screen display (OSD) and supports a 2048×1536 high video resolution that is ideal for graphical applications. With a 1U high design, the compact Avocent SwitchView™ switch does not compete for valuable rack space in SMB server rooms.
Plus, this KVM rack solution is flash upgradeable for fast and easy updates. The switch has a password protection feature which gives you the benefit of added security to your business-critical servers.
  • 产品基本信息
  • 产品特点与优点
Ordering Details
MODELS
Description Part Number
1 local user, 4-systems switch w/OSD USB and PS/2 support 4SV1000-xxx
1 local user, 4-systems switch w/OSD, USB and PS/2 support, includes 4 CBL0029 cables 4SV1000BND1-xxx
1 local user, 8-systems switch w/OSD USB and PS/2 support 8SV1000-xxx
1 local user, 8-systems switch w/OSD, USB and PS/2 support includes 4 CBL0029 cables and 4 CBL0030 cables 8SV1000BND1-xxx
1 local user, 16-systems rack-mount switch w/ OSD USB and PS/2 support 16SV1000-xxx
1 local user, 16-systems rack mount switch w/ OSD, USB and PS/2 support, includes 4 CBL0029 cables and 4 CBL0030 cables 16SV1000BND1-xxx
 *Note: Actual part number ends with country-specific code (example -001 for North America)
CABLES
Description Part Number
Cable PS2/USB for Avocent SwitchView 1000 switch – 6 ft. CBL0029
Cable PS2/USB for Avocent SwitchView 1000 switch – 9 ft. CBL0030
Cable PS2/USB for Avocent SwitchView 1000 switch – 15 ft. CBL0031
SERVICE OPTIONS
Description Part Number
1 YR SLV HW Maintenance SV 1YSLV-SV
2 YR SLV HW Maintenance SV 2YSLV-SV
4 YR SLV HW Maintenance SV 4YSLV-SV
1 YR GLD HW Maintenance SV 1YGLD-SV
2 YR GLD HW Maintenance SV 2YGLD-SV
4 YR GLD HW Maintenance SV 4YGLD-SV
Model Comparison
SWITCHES USERS PORTS FEATURES
Avocent SwitchView 1000 4-port 1 4 Provides local support for one user USB and/or PS/2 keyboards and mice.

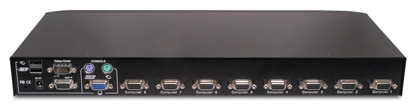

Avocent SwitchView 1000 8-port 1 8 Provides local support for one user USB and/or PS/2 keyboards and mice.

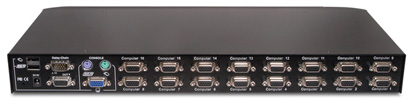

Avocent SwitchView 1000 16-port 1 16 Provides local support for one user USB and/or PS/2 keyboards and mice.
Technical Specifications
MECHANICAL
Height 1.75 in. (4.45 cm)
Width 16.14 in. (41 cm)
Depth 7.43 in. (18.9 cm)
Weight 4.19 lb. (1.9 kg)
ENVIRONMENTAL
Operating Temperature 32° to 104°F (0° to 40°C)
Storage Temperature -4° to 140°F (-20 to 60°C)
POWER
Operating Voltage AC 100 – 240VAC 50/60 Hz
Input Power DC 9V
DEVICE SUPPORT
Computers PC, Mac, Sun [with USB or PS/2 interface]
Video 2048×1536 maximum
Peripherals PS/2 keyboard, PS/2 mouse, USB keyboard, USB mouse, VGA monitor
STANDARDS
Approved Agency FCC, CE, C-Tick, UL, cUL



  • OSD – Simple control through an on-screen menu
  • Password Protection – Secure access is password protected
  • Flash Upgradeable – Convenient upgrades mean that the product never goes out of date
  • Hotkey Switching – Switch via keyboard sequence
  • Daisy Chain Auto-Initialization – Connect multiple units together without complicated configuration
  • Video Resolution – 2048×1536 video resolution supports the most demanding server room applications
  • 1U Height – Fits perfectly into a standard rack; does not use a large amount of valuable rack space
  • Combo Cables – Uses a three-in-one KVM cable that supports USB or PS/2 target devices
  • Programmable Auto-Scan – Customize scanning times between attached systems
  • USB and PS/2 System/Target and User Support – Supports PS/2 or USB peripherals to control a mix of PS/2 or USB user systems
