Avocent HMX 1000/2000 Series High Performance KVM System

产品简介:

The Avocent HMX Digital High Performance KVM system is part of the HMX matrix switching solution, an ideal solution for physical separation of computers from users.

  • 产品基本信息
  • 产品特点与优点
Ordering Details
MODELS
Description Part Number
HMX Manager
Management switch
or HMX extender systems
HMXMGR-xxx
HMX 1050
PS/2 and USB single DVI-I,
audio and microphone desktop user station
HMX1050-xxx
Computer interface module for DVI-I video,
2-USB, audio and microphone
HMIQDI

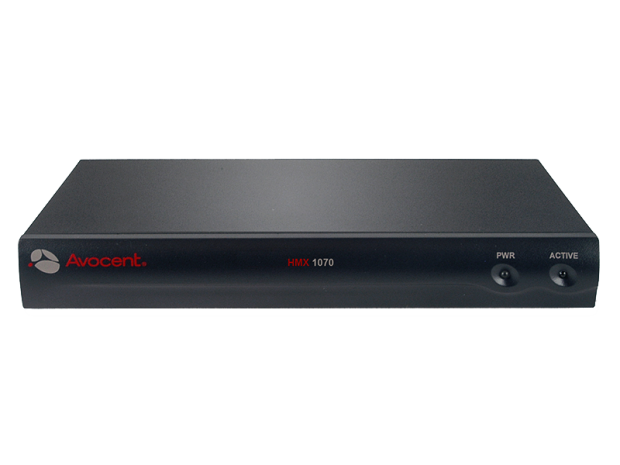

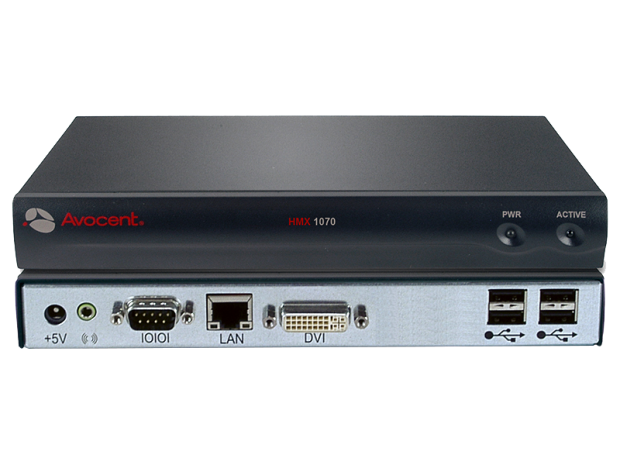

HMX 1070
USB, single DVI-D or VGA,
audio desktop user station
HMX1070-xxx

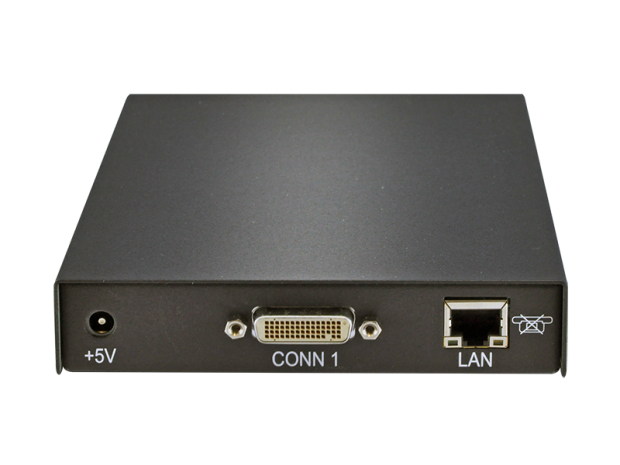

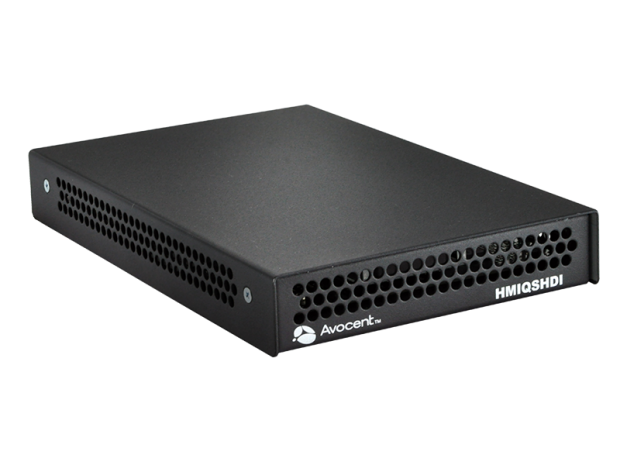

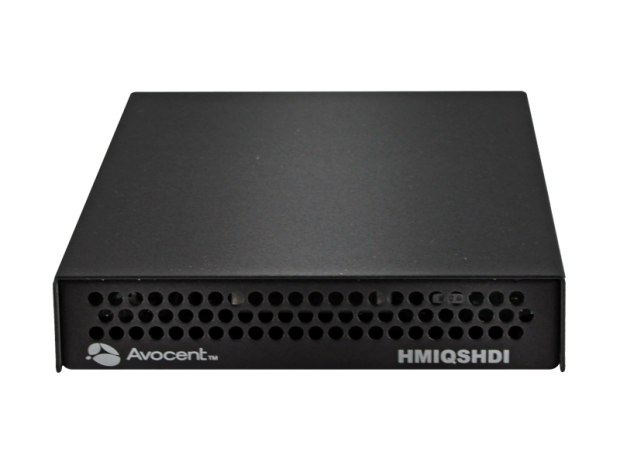

Computer interface module
for single VGA or DVI-D, USB, audio
HMIQSHDI-xxx

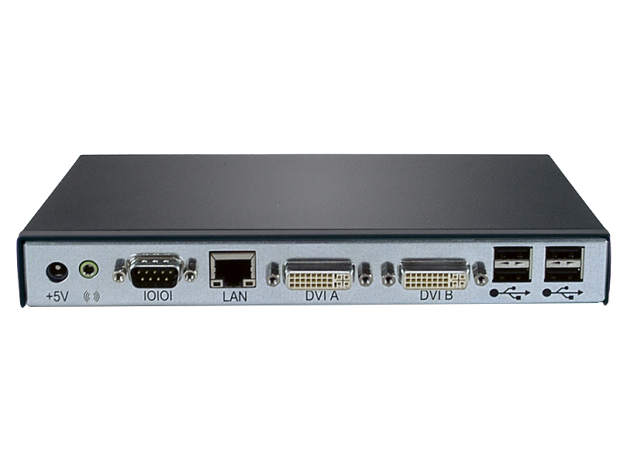

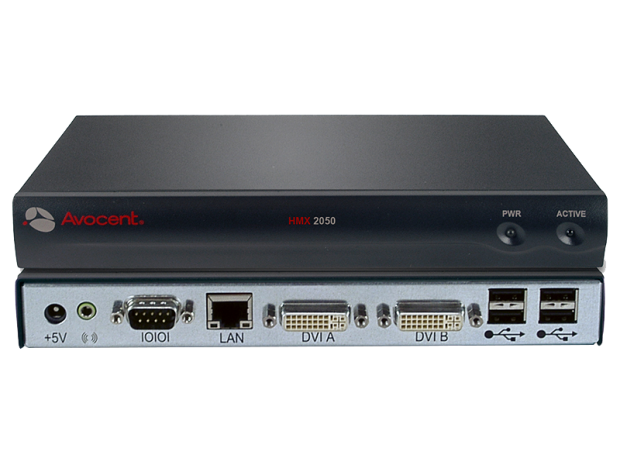

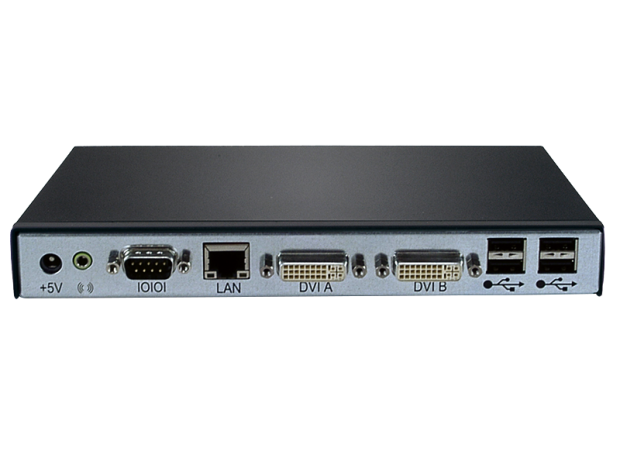

HMX 2050
USB, dual DVI-I, audio desktop user station HMX2050-xxx

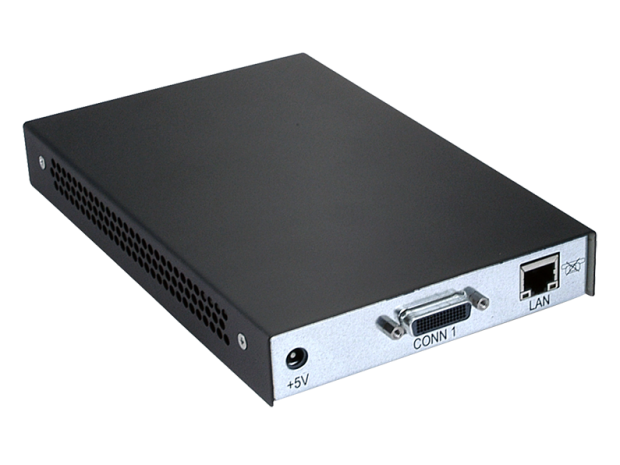

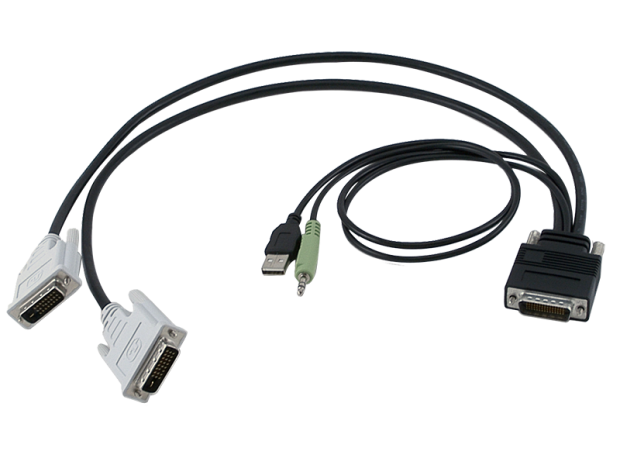

Computer interface module
for DVI-D video, USB, audio
HMIQDHDD-xxx
RMK-67 Rack Mount Kit
Rack Mount Kit for HMX Transmitters RMK-67
*Note: Actual part number ends with country-specific code (example -001 for North America)
SERVICE OPTIONS
Description Part Number
1 YR SLV HW Maintenance HMX1 1YSLV-HMX1
1 YR SLV HW Maintenance HMX2 1YSLV-HMX2
1 YR SLV HW Maintenance HMXIQ 1YSLV-HMXIQ
1 YR SLV HW Maintenance HMXMGR 1YSLV-HMXMGR
2 YR SLV HW Maintenance HMX1 2YSLV-HMX1
2 YR SLV HW Maintenance HMX2 2YSLV-HMX2
2 YR SLV HW Maintenance HMXIQ 2YSLV-HMXIQ
2 YR SLV HW Maintenance HMXMGR 2YSLV-HMXMGR
1 YR GLD HW Maintenance HMX1 1YGLD-HMX1
1 YR GLD HW Maintenance HMX2 1YGLD-HMX2
1 YR GLD HW Maintenance HMXIQ 1YGLD-HMXIQ
1 YR GLD HW Maintenance HMXMGR 1YGLD-HMXMGR
2 YR GLD HW Maintenance HMX1 2YGLD-HMX1
2 YR GLD HW Maintenance HMX2 2YGLD-HMX2
2 YR GLD HW Maintenance HMXIQ 2YGLD-HMXIQ
1 YR GLD HW Maintenance HMXMGR 1YGLD-HMXMGR
2 YR GLD HW Maintenance HMX1 2YGLD-HMX1
2 YR GLD HW Maintenance HMX2 2YGLD-HMX2
2 YR GLD HW Maintenance HMXIQ 2YGLD-HMXIQ
2 YR GLD HW Maintenance HMXMGR 2YGLD-HMXMGR
Model Comparison
MODEL ENCRYPTION NETWORK DESCRIPTION
HMX Manager SSL 100Mbps and 1Gbps Rack appliance for management of your HMX extender system
HMX 1050 User Station SSL/AES 128 bit 100Mbps and 1Gbps Desktop user station, single video, 1280×1024 @ 60Hz
HMX1070 User Station  SSL/AES 128 bit 100Mbps and 1Gbps Desktop user station, single video, 1920×1200 @ 60Hz
HMX 2050 User Station SSL/AES 128 bit 100Mbps and 1Gbps Desktop user station, dual video, 1920×1200 @ 60Hz
Technical Specifications
MECHANICAL HMX MANAGER HMX 1050 HMX 1070/2050
Height 1.7 in. (4.3 cm) 1.04 in. (26.5 mm) 1.10 in (28 mm)
Width 16.8 in. (42.7 cm) 5.12 in. (130 mm) 6.06 in (154 cm)
Depth 14 in. (35.6 cm) 8.27 in. (210 mm) 8.19 in (208 mm)
Weight 13 lbs. (5.9 kg) 1.54 lbs. (0.7 Kg) 2.09 lbs (.95Kg)
ENVIRONMENTAL
Operating Temperature 32° to 95°F
(0° to 35°C)
32° to 95°F
(0° to 35°C)
32° to 95°F
(0° to 35°C)
Storage Temperature -31° to 158°F
(-35° to 70°C)
-4° to 140° F
(-20° to 60° C)
-4° to 140° F
(-20° to 60° C)
Humidity 10% to 90%
non-condensing
10% to 90%
non-condensing
10% to 90%
non-condensing
POWER
Operating Voltage 100 – 240 VAC 100 – 240 VAC 100 – 240 VAC
Power Frequency 260W max 20W max 20W max
Input Power 5VDC / 1.1A
BTU/hr 1400 bus/hour
(for rated output power of 260 W)
DEVICE SUPPORT
Computers n/a PS/2 or USB keyboard and mouse, USB mass storage devices

Virtual USB for non-isochronous human interface devices

USB keyboard and mouse, USB mass storage devices

Virtual USB for non-isochronous human interface devices

Video n/a Analog or Digital
1280×1024 @ 60Hz
HMX1070- Analog or Digital 1920×1200 @ 60Hz

HMX2050- Two Digital 1920×1200 @ 60Hz Digital

Peripherals n/a Stereo speakers 24 bit 44kHz and mono microphone Stereo speakers 24 bit 44kHz
HARDWARE SPECIFICATIONS
Number of Network Connections 2 1 1
Type of Network Connections Ethernet, 10BaseT, 100BaseT, GigE Connector 100BaseT, GigE Connector 100BaseT, GigE Connector
Serial Port Type 1 n/a n/a
Serial Port Connector RS-232 n/a n/a
STANDARDS
Approved Agency FCC Class B, EN 55022 Class B, EN 61000-3-2/-3-3, CISPR 22 Class B, EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000- 4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11), EN 60950/IEC 60950-Compliant, UL Listed (USA), CUL Listed (Canada), TUV Certified (Germany), CE Marking (Europe) cUL, UL, CE, FCC15 Class A cUL, UL, CE, FCC15 Class A



The Avocent HMX Digital High Performance KVM system is designed for organizations that need to provide workers the ability to seamlessly access and share one or more computing resource(s) which are physically separated from their work environment. This solution provides users an “at-the-desktop” experience from their work stations to any appliances, PCs or computing resources attached to the HMX IP network. This real-time, high-quality “at-the-PC” user experience is perfect for demanding environments such as pre and postproduction editing (broadcast), control rooms (broadcast, industrial, manufacturing, energy/utilities, IT, telecom and emergency response) and collaborative environments (training/simulation, medical diagnosis and imaging and financial trading desks).

Today, the Avocent HMX Digital High Performance KVM system empowers the command centers of major hydroelectric plants; streamlines the editing of Hollywood blockbusters and is used in production environments by a vast majority of major broadcasting television and cable networks. In these and other cases, the Avocent HMX Digital High Performance KVM system enables organizations to improve employee productivity, reduce IT costs and, ultimately, produce better business results for their customers.

The Avocent HMX Digital High Performance KVM system is the ideal solution for these demanding environments. This can be easily deployed over a local area network (LAN). It supports a comprehensive range of peripherals including DVI-I video, CD audio, USB mass storage, keyboard and mouse and other USB devices.

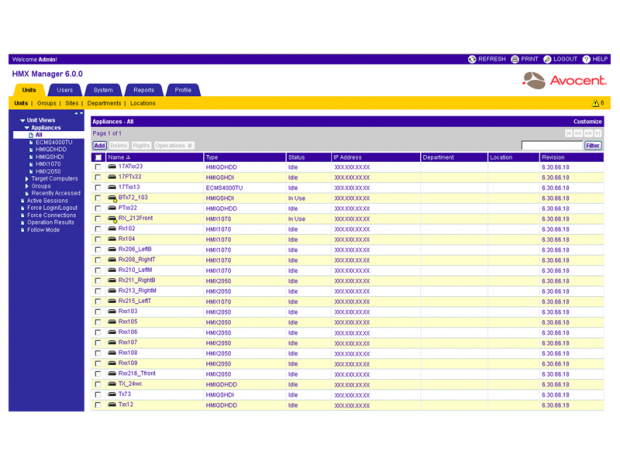

The Avocent HMX Digital High Performance KVM system is ideal for the enterprise market bringing a robust set of administrative tools with the Avocent HMX Manager. The Avocent HMX Manager provides administration and connection-management control from a central location, enabling the desktop administrator to effectively and efficiently manage the computing resources without compromising the user experience.

Features and Benefits

  • Eliminates Distance Limitations within the LAN – Allows computers and
    users to be located anywhere on the network
  • High-Quality DVI Video and CD Audio – For intensive graphic and audio
    applications
  • Centralized Management – Via a single console, including access, desktop
    pooling and reporting
  • Centralized, User-Rights Management – HMX system allows user
    administration and authentication through AD, LDAP, TACACS+, RADIUS, RSA SecureID and NT
  • Greater Security – 128bit AES encryption for secure access
  • No Dedicated Cabling – Removes the need for dedicated cabling between
    user and computer
  • Dual, Digital DVI Video – Up to 1920×1200
  • USB Support – USB media and most other USB devices including USB keyboard/mouse as well as vUSB
  • Interoperability – Between the HMX extender system and the single- and
    dual-video, high-resolution products
