DSR digital switches let you remotely manage and power cycle connected devices. Centralize the management of the switches with DSView 4 software.

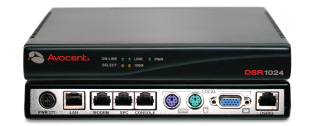

Avocent DSR Digital KVM-over-IP Switches
产品简介：
- 产品基本信息
- 产品特点与优点
Ordering Details
| MODELS | |
|---|---|
| Desription | Part Number |
| 1 digital user, 1 local user, 1 PS/2 system KVM over IP desktop switch | DSR1024PS2-XXX* |
| 1 digital user, 1 local user, 1 USB system KVM over IP desktop switch | DSR1024USB-XXX* |
*:Actual part number ends with country-specific code (example -001 for North America)
| MODULES | |
|---|---|
| Description | Part Number |
| Virtual media server interface module for VGA video, PS/2 keyboard and mouse and USB 2.0 virtual media with 14 in. PS/2 and USB cables, required for DSR and AutoView switches | DSAVIQ-PS2M |
| 32 pack, Virtual Media server interface module for VGA video, PS/2 keyboard & mouse, & USB 2.0 Virtual media w/ 14in. PS/2 % USB cables, requires for DSR & AutoView switches | DSAVIQ-PS2M32 |
| Server interface module for VT100 serial devices (requires UPD-AM) | DSRIQ-SRL |
| Server interface module for VGA or 13W3 video, Sun keyboard and mouse | DSRIQ-VSN |
| ACCESSORIES | |
|---|---|
| Description | Part Number |
| Power supply for AMIQ-SRL, AVRIQ-SRL and DSRIQ-SRL modules; each power supply can power up to four serial interface modules | UPD-AM |
| SERVICE OPTIONS | |
|---|---|
| Description | Part Number |
| 1 YR SLV HW MAINTANCE DSR 1024 | 1YSLV-DSR1024 |
| 1 YR GLV HW MAINTANCE DSR 1024 | 1YGLV-DSR1024 |
| 2 YR SLV HW MAINTANCE DSR 1024 | 2YSLV-DSR1024 |
| 2 YR GLV HW MAINTANCE DSR 1024 | 2YGLV-DSR1024 |
| 4 YR SLV HW MAINTANCE DSR 1024 | 4YSLV-DSR1024 |
| 4 YR GLV HW MAINTANCE DSR 1024 | 4YGLV-DSR1024 |
Overview
The DSR1024 is a singleport KVM switch that provides IT administrators a complete and secure remote management solution to access and control servers and other equipment found in data centers and branch offices.
By enabling both in-band and out-of-band tool use, the switches allow for a more fault-tolerant and complete remote management solution. Remote, out-of-band connections compliment traditional in-band/software tools to improve troubleshooting, shorten response times and help minimize unplanned downtime.
The DSR switches provide remote users from anywhere the capabilities of a direct, physical connection to KVM, USB and serial ports of servers and other IT equipment.
Portions of the DSR™ digital switch use the GoAhead webserver which is Copyright 2005 GoAhead Software, Inc. All Rights Reserved.
Technical Specifications
| MECHANICAL | |
|---|---|
| Height | DSR 1024 switch – 1.10 in. (2.80 cm) |
| Width | DSR 1024 switch – 8.08 in. (20.51 cm) |
| Depth | DSR 1024 switch – 6.30 in. (16.00 cm) |
| Weight | DSR 1024 switch – 1.1 lbs. (0.50 kg) without cables |
| ENVIRONMENTAL | |
| Operating Temperature | 32° to 104°F (0° to 40°C) |
| Storage Temperature | -4° to 158°F (-20° to 70°C) |
| POWER | |
| Operating Voltage | 100 – 240 VAC |
| Power Frequency | 50-60 Hz auto-sensing |
| Input Power | 25W maximum |
| DEVICE SUPPORT | |
| Computers | PS/2, Sun, USB |
| Video | VGA, SVGA, XGA and SXGA; maximum resolution: 1280×1024 @ 75 Hz |
| Peripherals | USB keyboard and mouse, PS/2 keyboard, PS/2 mouse, IntelliMouse (DSR 1024 switch available with PS/2 only) |
| STANDARDS | |
| Approved Agency | UL, FCC, cUL, ICES-003, CE, GS, VCCI, MIC, C-Tick, GOST |
- Advanced Remote Management – Provides secure and remote, out-of-band connections directly to the physical KVM, USB and serial ports to complement existing in-band software management tools
- Meet Service Level Agreements and Minimize Downtime – Unified approach enables IT administrators a faster method to diagnose, reconfigure or restore equipment
- Enhanced Serial Adapters – Supports standard, remote SSH connections to the attached serial devices and includes electronic pin-out options for quick and easy connections to the console ports on Cisco network equipment
- Power Device Port – Connect supported PDUs for integrated power control, measurement and reporting
